Torch Series
HC-BZT3Pro Torch · 3 Tips · Triple Jet Flame · 360° Swivel
Pro Torch3600 °F3 TipsTriple JetMAP-Pro
$71.74
In stock· ships same business day from Miami
Direct from the manufacturer — Miami HQ, full warranty & tech support included.
In stock, ready to ship
Assembled
Tested in Miami
Warranty
1-Year Full
Ships
1–2 Days
- Field-tested by working HVAC technicians
- Free returns within 30 days
- Direct manufacturer support — Miami HQ
- ORDER IN THE NEXT — AND IT SHIPS TODAY FROM MIAMI

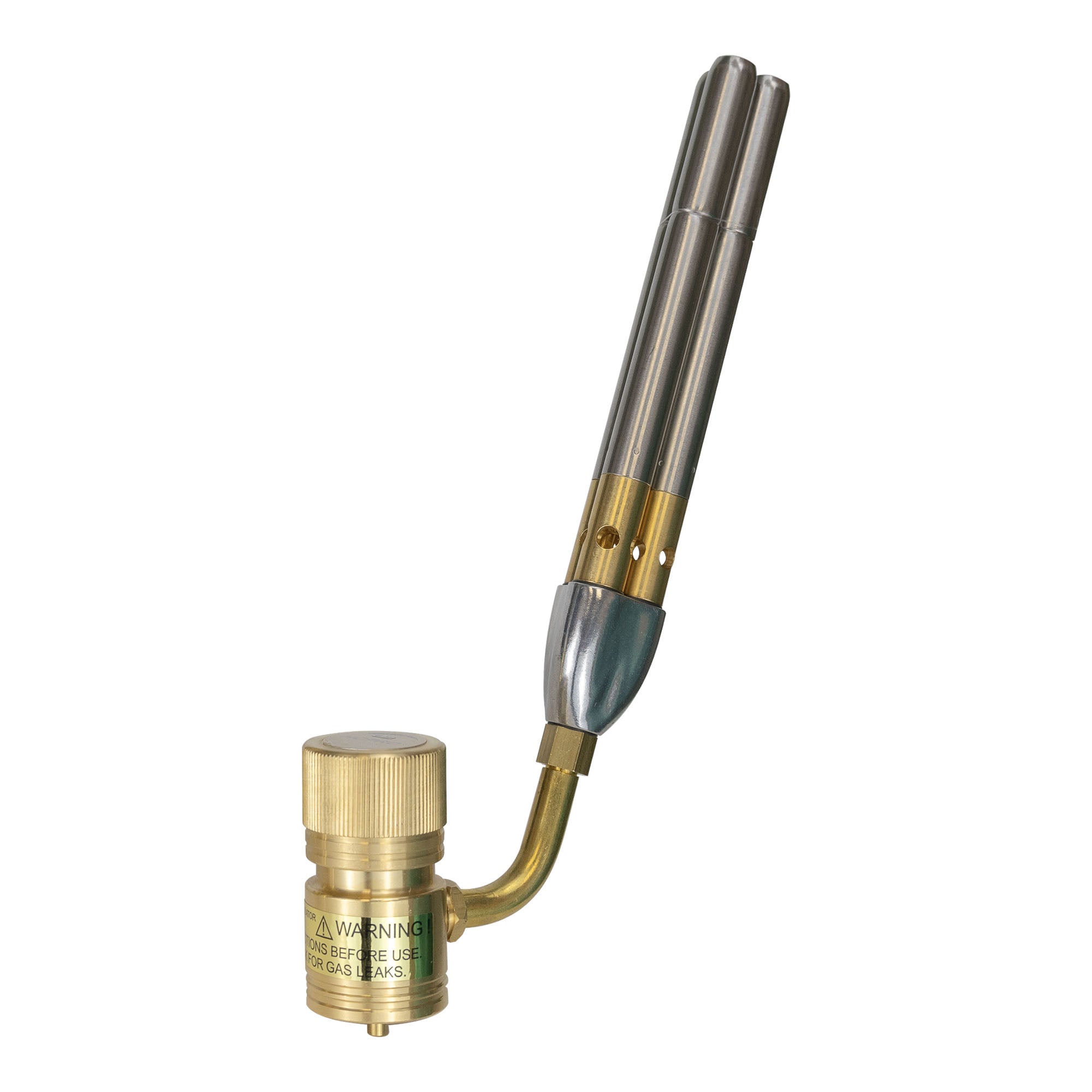

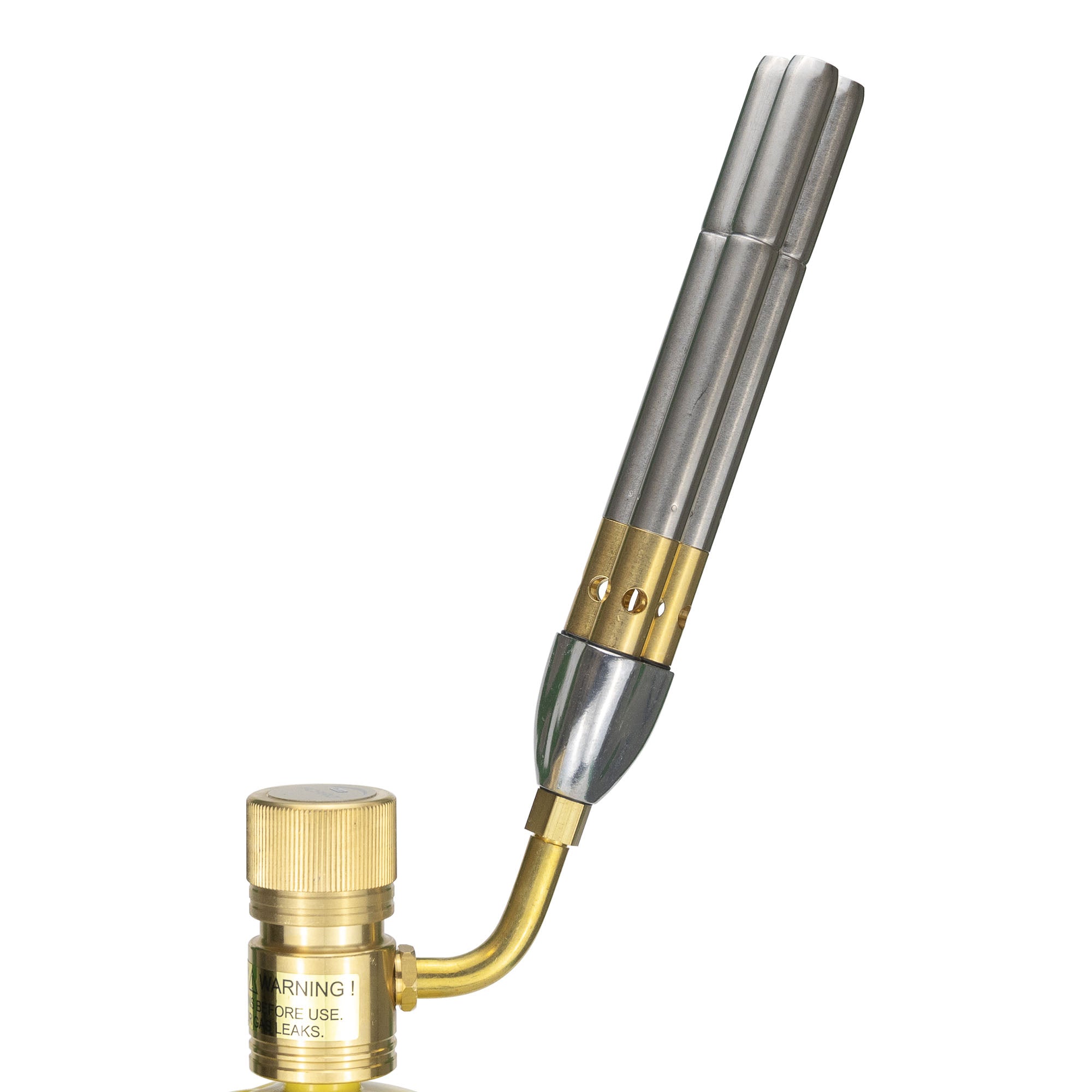

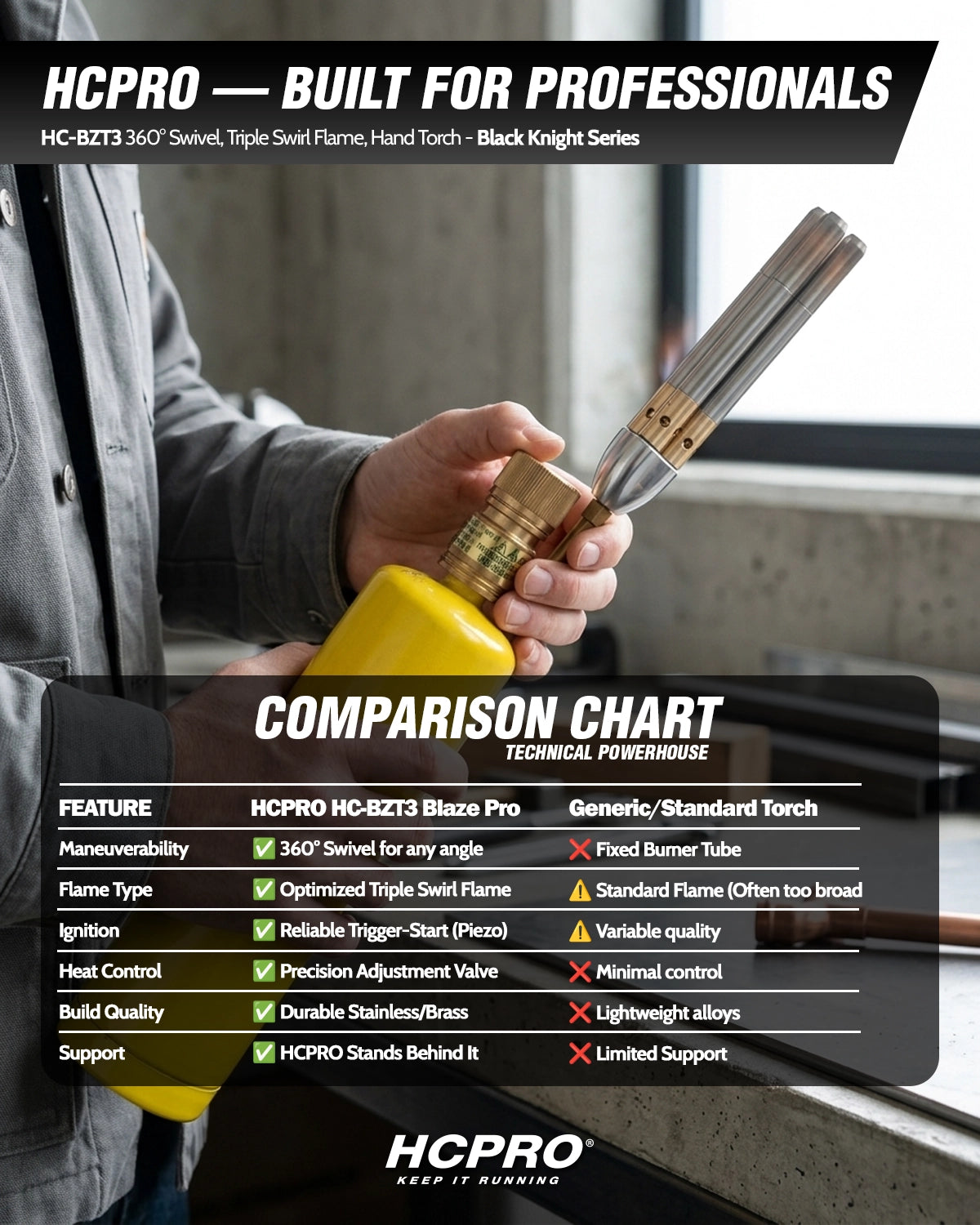

Blaze HC-BZT3 3 Tip Torch – Triple Jet Flame, 360° Swivel Head
$71.74 USD
3600°F
Max Flame Heat
1,982 °C triple-jet flame — three nozzles combined for maximum heat on the joint
360°
Swivel Head Rotation
Work the joint at any angle without repositioning the cylinder or the pipe
3TIPS
Triple Jet Flame Head
Three precision-aligned nozzles combine into one high-intensity flame — fastest in the lineup
4″
Max Refrigerant Braze
Single-pass on copper line sets up to 4" with MAP-Pro — handles big commercial line sets
Why pros choose it
Engineered for fast brazing, built for the long shift.
Every HCPRO tool is field-tested by working HVAC technicians before it ships from our Miami warehouse.

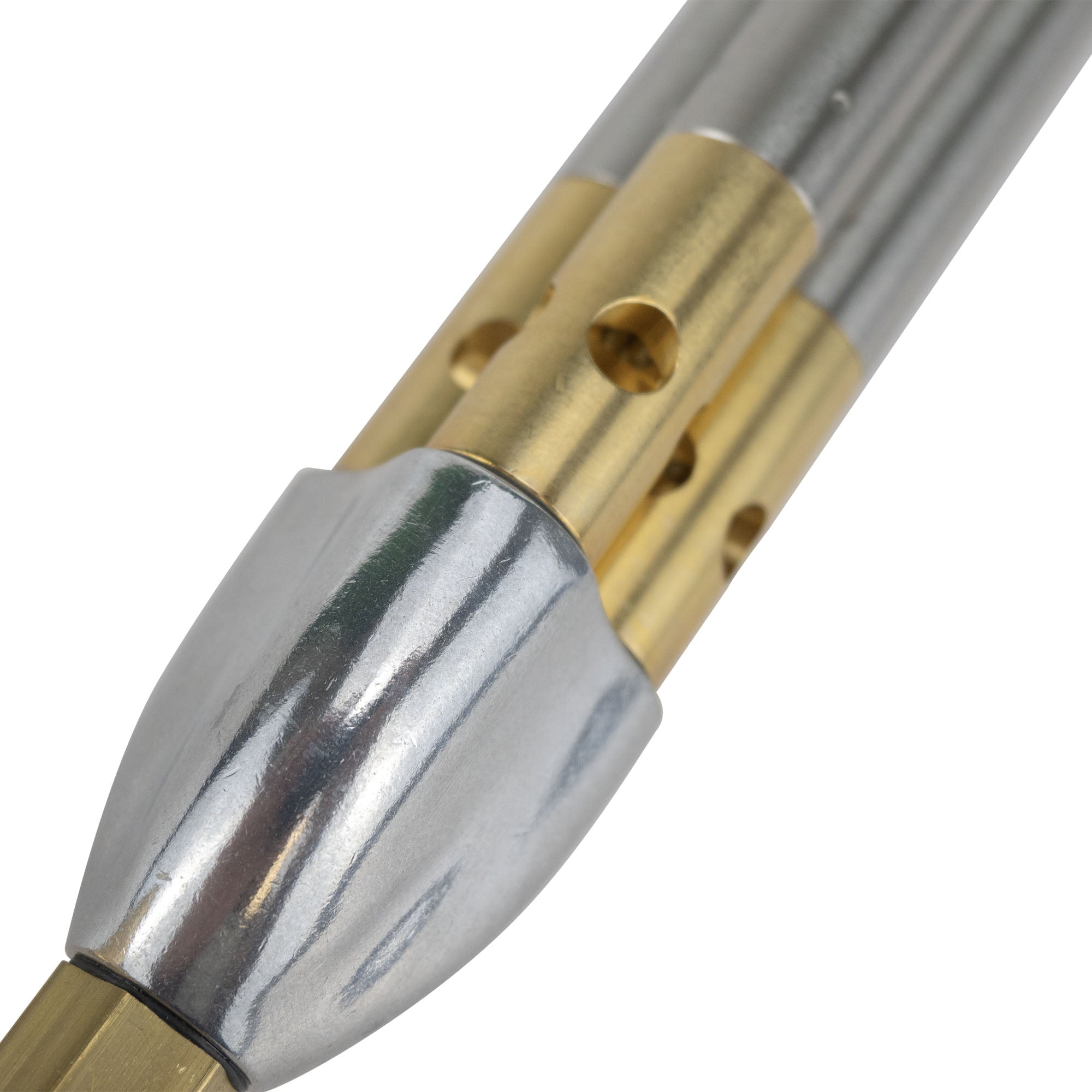

Triple jet, one focused flame
Three precision-aligned nozzles combine into a single high-intensity flame — not three separate flames. Concentration matters: you get the heat density of a single tip with the output of three. Fastest pump-up to brazing temp in the Blaze lineup at 433 BtuH on MAP-Pro.

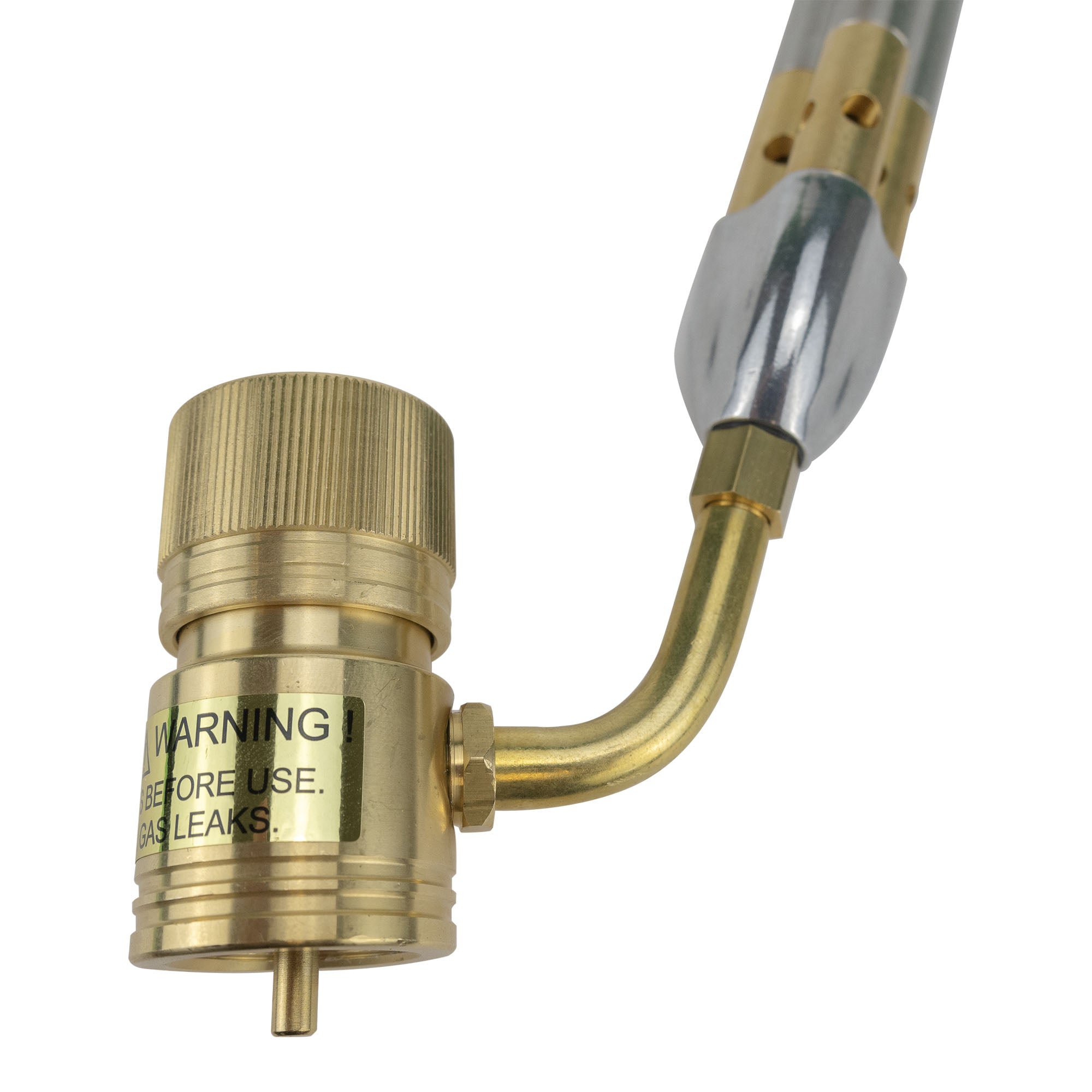

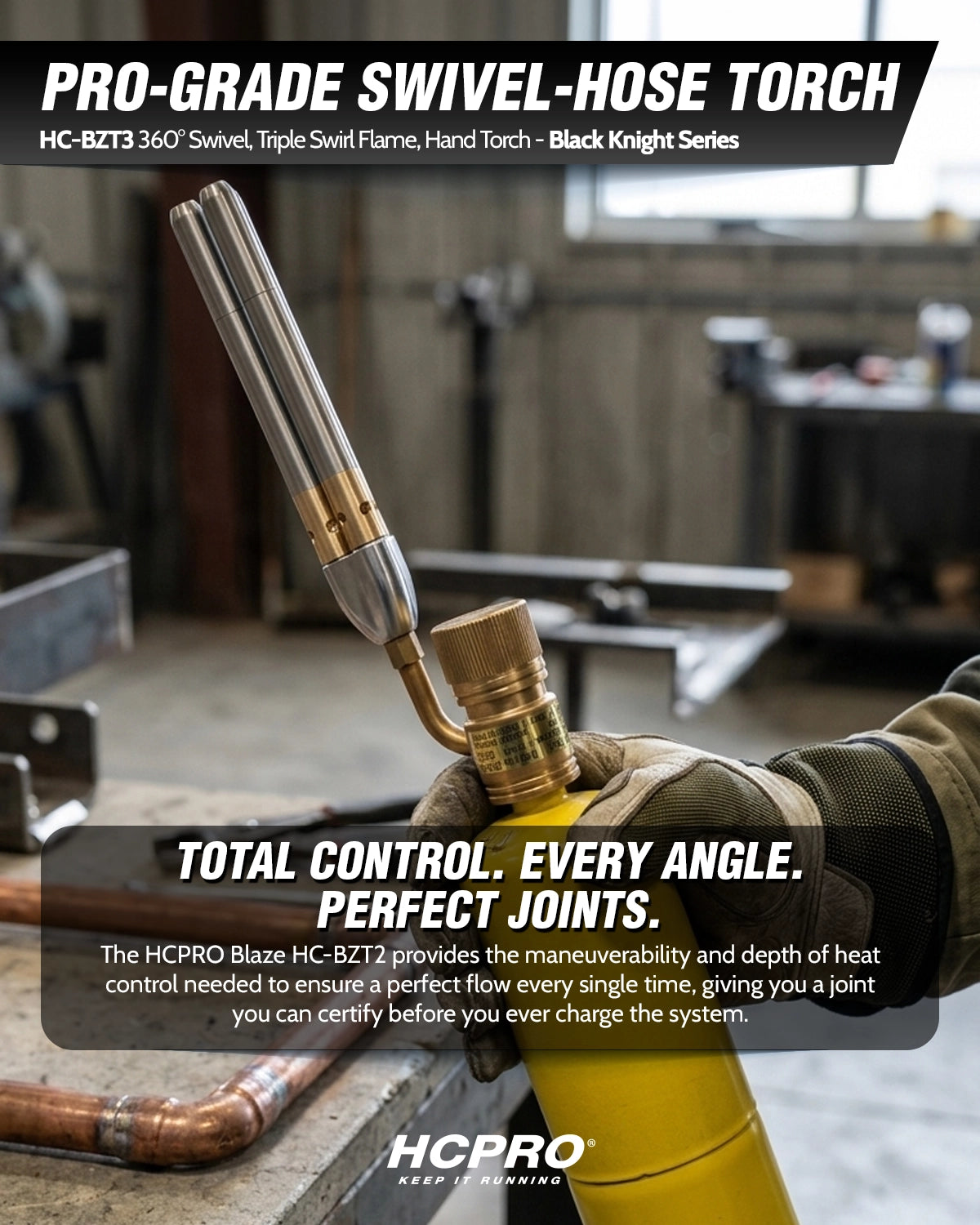

360° swivel, commercial ready
Head rotates a full 360° at the neck. Built for the kind of access you need on commercial rooftop units, big condensers, and overhead line sets where you can't reposition the cylinder. Lock at any angle and braze.

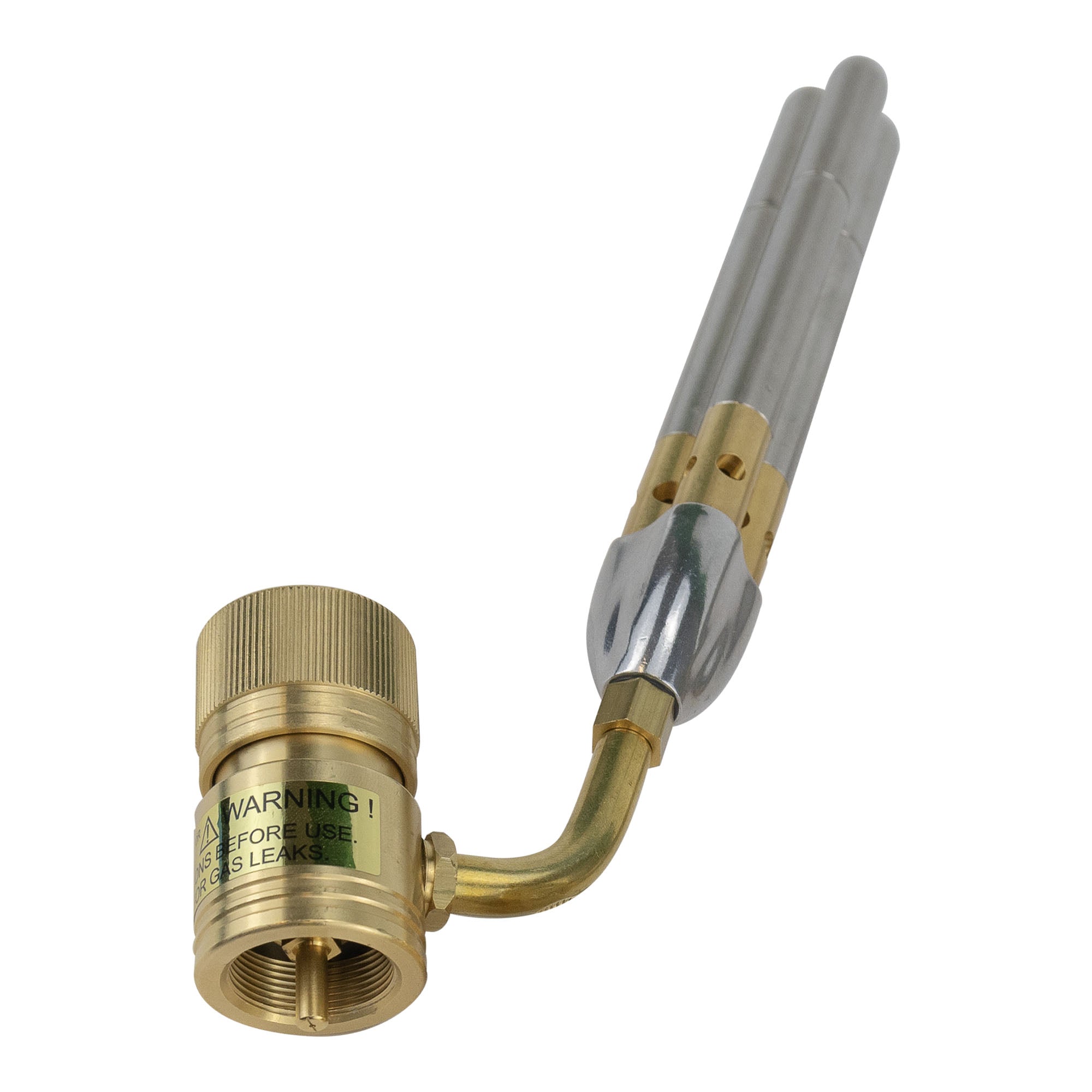

Solid brass, built for big copper
All-brass body with three stainless steel burner tubes. Brazes copper up to 4" with MAP-Pro single-pass, solders up to 6". This is the workhorse — pulled out when the BZT1 or BZT2 won't get the bigger joint to braze temp fast enough.
Full Product Description
The Blaze HC-BZT3 is a high-performance 3-tip torch designed for professionals who need fast, powerful, and controlled heating. This torch features a triple-jet fixed flame head that delivers a concentrated, high-intensity flame for brazing, soldering, and metalwork.
Unlike interchangeable tip systems, the HC-BZT3 has a single, solid flame output generated by three precision-aligned nozzles. Its 360° swivel head provide excellent flexibility, especially in tight HVAC service areas. Built with a durable brass body, this torch is compatible with both MAP-Pro and propane fuels.
This tool is ideal for HVAC professionals, plumbers, and fabricators who value speed, simplicity, and reliability.
Key Features:
- Three Stainless Steel Burner Tubes: Provides versatile and efficient heating.
- 360° Swivel: Allows for easy maneuverability and comfortable use in any direction.
- Solid Brass Handle: Ensures durability and a professional grade feel.
- Adjustable Flame: Control the intensity of the flame to suit your specific needs.
- Anti-Flare Feature: Reduces flare-ups for safer operation.
- Compatibility: Works with both Propylene (MAPPRO) and Propane gas cylinders.
Applications:
- Ideal for plumbing, refrigeration, air conditioning, and electrical work.
- Perfect for professional and DIY soldering, brazing, heat shrinking, thawing, and even cooking and grilling.

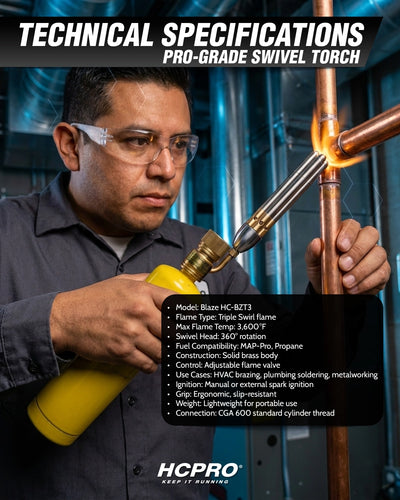

Technical specifications
Numbers a working brazer actually cares about.
No marketing fluff. Every spec is what you'll measure with a real meter on a real job site. Tested against ASME B16.22 brazing joint specifications for copper line sets.
Max flame temperature
1,982 °C / 3,600 °FTriple-jet concentrated flame
Heating capacity (MAP-Pro)
433 BtuHHighest output in the Blaze single-cylinder line
Heating capacity (Propane)
255 BtuHHotter MAP-Pro recommended for max performance
Tip configuration
3 tips (fixed triple jet)Integrated, non-removable — single combined flame
Head rotation
360° swivelFull rotation at the neck — lock at any angle
Ignition
Manual (striker required)Regulator-controlled on/off flow
Fuel compatibility
Propane, MAP-ProMAP-Pro recommended for max output
Solder capacity (Propane)
Up to 4" copperSingle-pass on plumbing line
Solder capacity (MAP-Pro)
Up to 6" copperLargest solder capacity in the Blaze lineup
Braze capacity (Propane)
Up to 2-1/2" copperSingle-pass — brazing needs more heat than soldering
Braze capacity (MAP-Pro)
Up to 4" copperBig commercial refrigerant line sets, single-pass
Silver braze (both fuels)
Up to 1" copperSame max regardless of fuel — silver alloy is the limiter

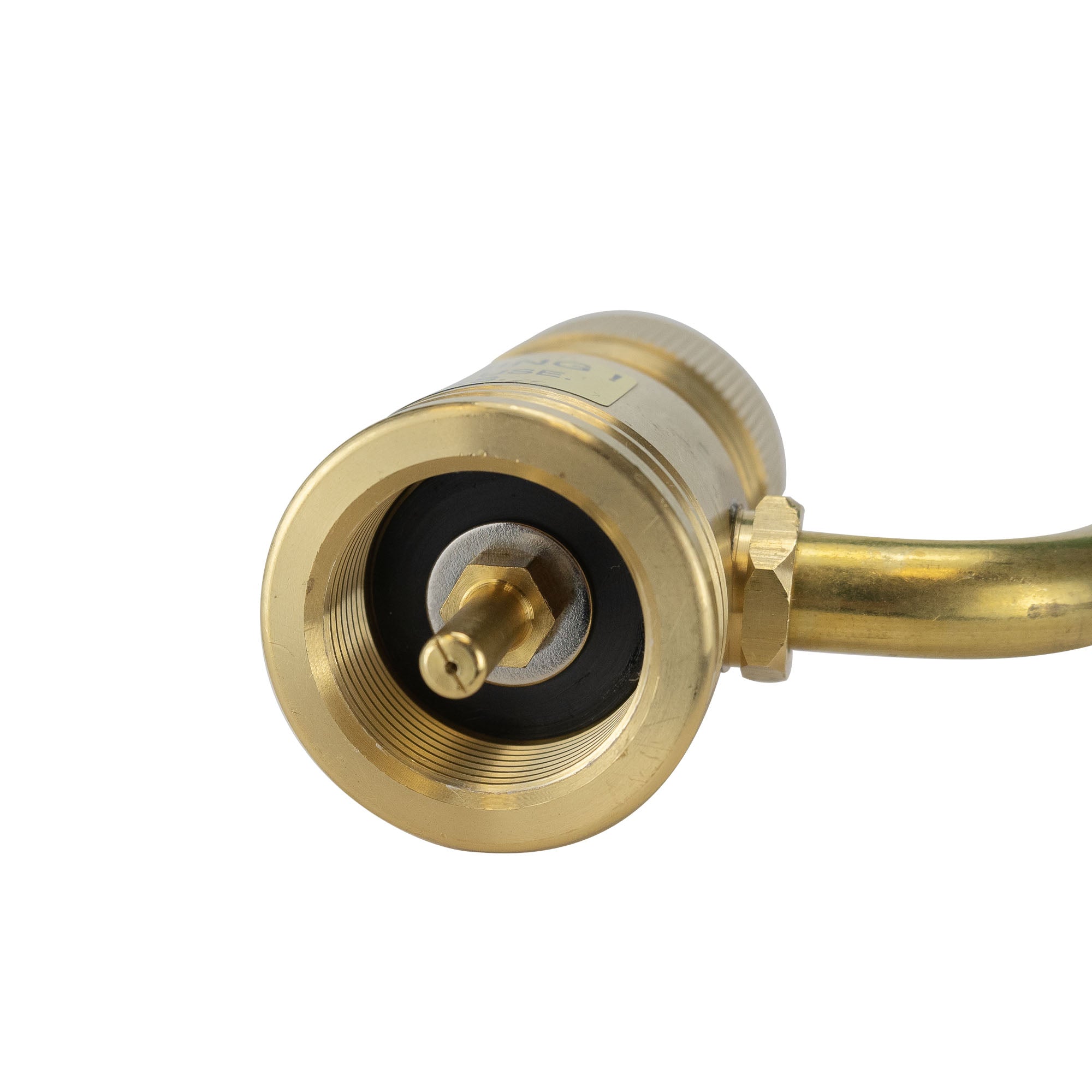

Cylinder fitting
CGA-600 / NPT USA standardFits 14.1 oz and 16 oz MAP-Pro / Propane tanks
Body / burner
Solid brass body, stainless burner tubesBrass cylinder grip handle
Tubing capacity
What this torch can actually solder and braze.
Hotter fuels (MAP-Pro) push the max joint size up. Soldering caps are larger because brazing needs more heat to flow the alloy.
Compatible Fuels
Standard
Propane
A3 · Hydrocarbon
Hot
MAP-Pro
Propylene-methyl blend
Soldering Capacity (Copper)
Propane
Solder Up To
4"
Copper, single-pass
MAP-Pro
Solder Up To
6"
Copper, single-pass
Brazing Capacity (Copper)
Propane
Braze Up To
2-1/2"
Copper, single-pass
MAP-Pro
Braze Up To
4"
Copper, single-pass

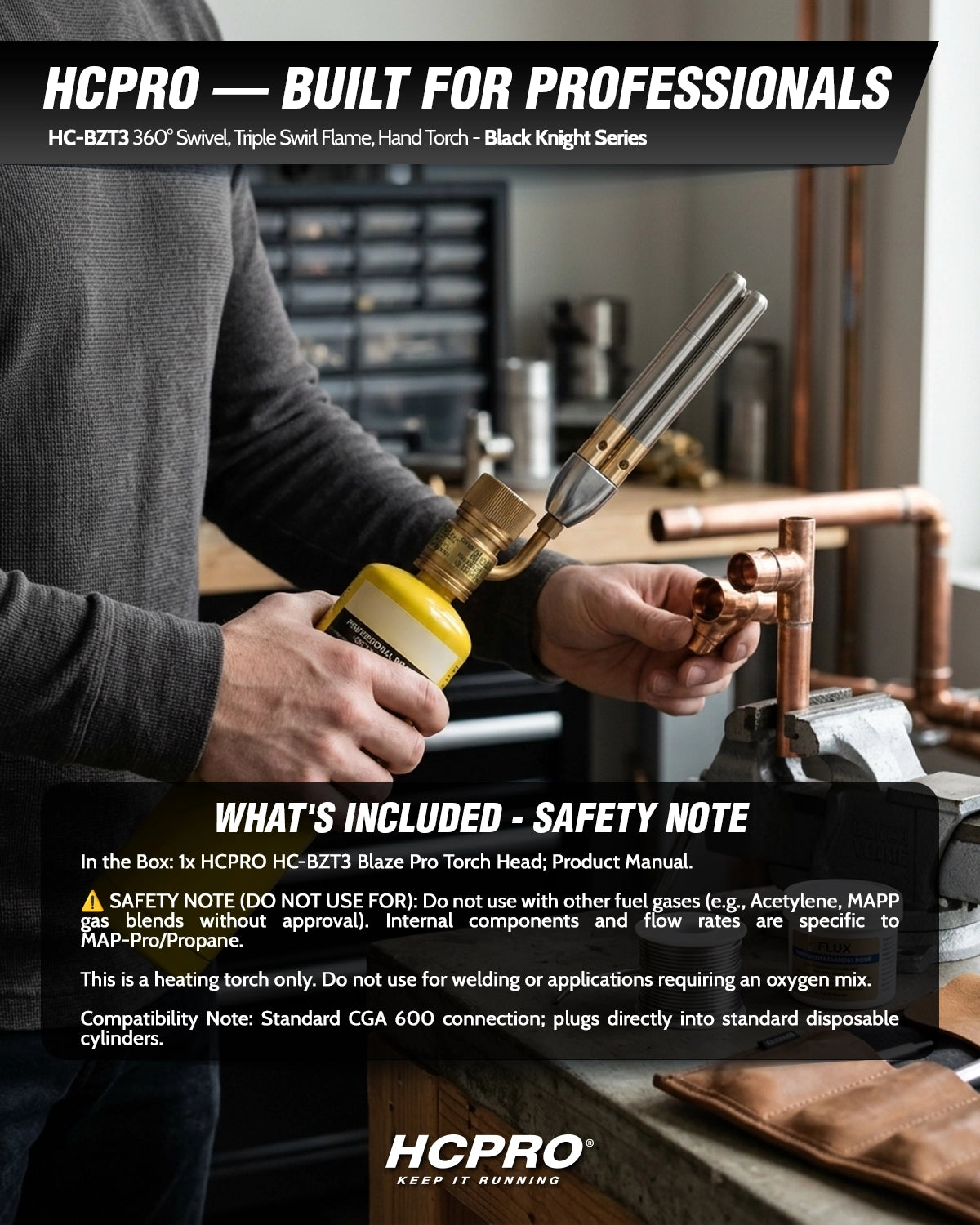

In the box
Thread it on, light it up, braze the big joint.
Blaze HC-BZT3 Pro Torch360° swivel head, fixed triple-jet flame, solid brass body, stainless steel burner tubes, brass cylinder grip
Operator manual + warranty cardFuel guide, flame adjustment tips, 1-year coverage details
Customer reviews
What working techs say after putting it on the job.
12,000+
HVAC pros served
4.9★
Average rating
94%
Repeat buyers
Replace this with a real customer quote.
Replace this with a real customer quote.
Tools that pair with the HC-BZT3.
22-0091
Blaze HC-BZT1 Pro Torch – 360° Swivel, Swirl Flame, Flame Control
$60.00
22-0092
Blaze HC-BZT2 Two Tip Swivel Pro-Hand Torch
$77.77
22-0103
High Intensity Auto-Trigger Welding Torch Kit – Blaze HC-BZK3 w/ Tips
$64.75
22-0004-1
HCAD410 R410A Adapter 1/4" SAE Male to 5/16" Female HVAC Fitting
$16.01
22-0008
1/4” Neoprene HVAC Hose Gaskets – Leak-Proof Sealing Rings
$16.01
Common questions
Answers from the warehouse floor.
Still stuck? Call our techs at 305-720-0044.
Does HCPRO warranty the products?
Yes — every HCPRO tool ships with a 1-year limited warranty against manufacturing defects. We'll repair or replace the unit if it fails under normal use. See our full warranty terms.
Does this torch include the fuel cylinder?
No. The HC-BZT3 threads directly onto any standard 14.1 oz or 16 oz MAP-Pro / Propane cylinder via the built-in CGA-600 fitting. Cylinders are sold separately at any hardware store for $5–10 each.
Does it come with an ignition striker?
No — the BZT1 uses manual ignition. You'll need a flint striker (sold at any hardware store for under $5). Open the gas knob, strike the spark, set the flame level with the brass adjustment knob. Most pros carry one striker per truck.
What's the triple-jet flame and how is it different from 3 separate flames?
Three precision-aligned nozzles fire toward a common focal point — the flames merge into one high-intensity flame, not three separate ones. You get the focused concentration of a single tip with the total output of three (433 BtuH on MAP-Pro). That's why it brazes bigger pipes faster than dual-tip torches.
When should I choose BZT3 vs BZT1 or BZT2?
BZT1 (single tip) — residential service. BZT2 (dual tip) — residential + light commercial. BZT3 (this one — triple jet) — biggest copper, commercial line sets up to 4" with MAP-Pro, highest output at 433 BtuH. If you're brazing 3"+ copper regularly, this is the torch.
What's the largest copper I can braze?
Soldering: up to 4" with Propane, up to 6" with MAP-Pro. Brazing: up to 2-1/2" with Propane, up to 4" with MAP-Pro. Silver brazing: up to 1" with either fuel (the silver alloy is the limiter, not the heat). This is the largest single-cylinder torch in the Blaze line — beyond this, you're into oxy-fuel territory.
What fuels work with this torch?
Propane and MAP-Pro. MAP-Pro is a propylene-methyl blend that burns at ~3,730 °F vs Propane's ~3,610 °F — the extra heat lets you braze bigger pipes faster. Both use the same CGA-600 cylinder fitting.
Will using HCPRO products void my OEM warranty?
No. Under the Magnuson-Moss Warranty Act of 1975, an OEM cannot void your factory warranty for using compatible aftermarket parts. Our products are spec'd to OEM standards. If a dealer pushes back, contact us and we'll send the documentation.
Can I return it if it doesn't work for my setup?
Yes — free returns within 30 days for unused tools in original packaging. If you've already lit the torch, we can still take it back but a small inspection fee applies. Read our full return policy.
Do you offer bulk pricing for contractors or shops?
Yes. For orders of 3+ units we offer trade pricing. Email hcproproductsusa@gmail.com with your business details and we'll send a quote within 24 hours.
