Quick-Y Vacuum Adapter — 3-Port HVAC Manifold Alternative (3/8" SAE)
Black Knight Series logo with a helmeted figure on a white background
HCPRO-Products-Black-Logo
Black Knight
Vacuum Tool

HCY383-port Quick-Y vacuum tee — pull the system and charge through one 3/8" connection

SKU · 22-0102MPN · HCY38
A2L Safe3-Port3/8" SAEFaster Evacuation
$48.71
Out of stock· backorder available
Direct from the manufacturer — Miami HQ, full warranty & tech support included.
Out of stock
Designed
In Miami, USA
Warranty
1-Year Full
Ships
1–2 Days
  • Field-tested by working HVAC technicians
  • Free returns within 30 days
  • Direct manufacturer support — Miami HQ
  • ORDER IN THE NEXT — AND IT SHIPS TODAY FROM MIAMI
3PORT
3/8″ Vacuum Tee

A 3-port 3/8″ SAE vacuum tee — connect pump, system, and micron gauge on one unrestricted junction, no manifold bottleneck

20MICRONS
Deep-Vacuum Rated

Vacuum-rated to 20 microns — full 3/8″ bore means no flow restriction, so your pump reaches deep vacuum faster than through a manifold

NOMANIFOLD
Manifold Alternative

Skip the restrictive manifold for evacuation — the Quick-Y gives the pump a direct, wide-open path to the system for the fastest possible pull-down

HCPRODESIGNED
Built to Black Knight Spec

HCPRO-designed to Black Knight specifications and quality-control standards — engineered in Miami, built to spec by our manufacturing partner

Why Black Knight

3-port 3/8″ tee.

No manifold choke.

20-micron rated.

The HCPRO Black Knight HCY38 Quick-Y Vacuum Adapter is a 3-port 3/8″ SAE tee that gives your pump a direct, unrestricted path to the system — skip the manifold bottleneck for evacuation and pull deep vacuum dramatically faster. Vacuum-rated to 20 microns.

3/8″ wide-open evacuation path

A standard manifold is built for charging, not evacuation — its internal passages choke vacuum flow and slow your pull-down. The Quick-Y is a 3-port 3/8″ SAE tee with full unrestricted bore: connect your vacuum pump, the system, and a micron gauge, and the pump gets a direct wide-open path. Deep vacuum, dramatically faster.

True micron reading, 20-micron rated

The third port holds your micron gauge right at the system — so you read true system vacuum, not a number distorted by manifold restriction. Vacuum-rated to 20 microns with no internal leak points, the Quick-Y lets your gauge tell you the truth about when the system is actually dry and tight.

The pro evacuation shortcut

Serious evacuation techs pull vacuum through the Quick-Y, not the manifold — then switch to the manifold only for charging. Pair it with a 3/8″ Dual Force evacuation hose and a Black Knight vacuum pump for the fastest deep-vacuum setup you can build. Solid brass, 3/8″ SAE all around.

Full Product Description

The HCPRO Black Knight HCY38 is a 3-port Quick-Y vacuum tee that lets you evacuate and charge through a single 3/8" SAE connection — cutting pull-down time on every job.

Key features

  • 3-port tee combines vacuum pump, micron gauge and charging line on one 3/8" SAE connection
  • Large 3/8" bore for high-conductance, faster evacuation
  • Forged brass, leak-tight under deep vacuum
  • HCPRO-designed to Black Knight specifications

Pair with a 3/8" evacuation hose and vacuum pump for the fastest pull-down a 1/4" setup can't reach.

Technical specifications

Quick-Y specs for the fastest evacuation path.

HCPRO Black Knight HCY38 Quick-Y Vacuum Adapter — 3-port 3/8″ SAE tee, full unrestricted bore, vacuum-rated to 20 microns. Skip the manifold bottleneck for evacuation. HCPRO-designed to Black Knight specifications.

Model
HCY383-port 3/8″ SAE vacuum tee — manifold alternative for evacuation
Ports
3 × 3/8″ SAEPump, system, and micron gauge on one unrestricted junction
Bore
Full 3/8″ unrestrictedNo flow restriction — faster pull-down than through a manifold
Vacuum rating
20 micronsDeep-vacuum rated with no internal leak points
Material
Solid brass / aluminumDurable, holds deep vacuum without weeping
Function
Manifold alternative for evacuationDirect pump-to-system path; switch to manifold for charging
Gauge port
Yes — dedicated micron gauge portRead true system vacuum, undistorted by manifold restriction
Refrigerant compatibility
All HFC / A2L (R-410A, R-32, R-454B, etc.)Evacuation accessory — refrigerant-agnostic
Application
High-speed system evacuationMini-split, VRF, residential, and commercial deep-vacuum work
Best paired with
3/8″ Dual Force hose + vacuum pumpThe complete fastest-evacuation setup
Brand
HCPRO Black KnightThe HCPRO professional HVAC service tool line
Country of origin
ChinaHCPRO-designed in Miami to Black Knight specifications, built to spec and quality-controlled to OEM standards
Connection
3/8″ SAE all portsStandard 3/8″ evacuation fittings — pump, hose, and gauge
Warranty
1-year limitedCovers manufacturing defects under normal professional use
In the box

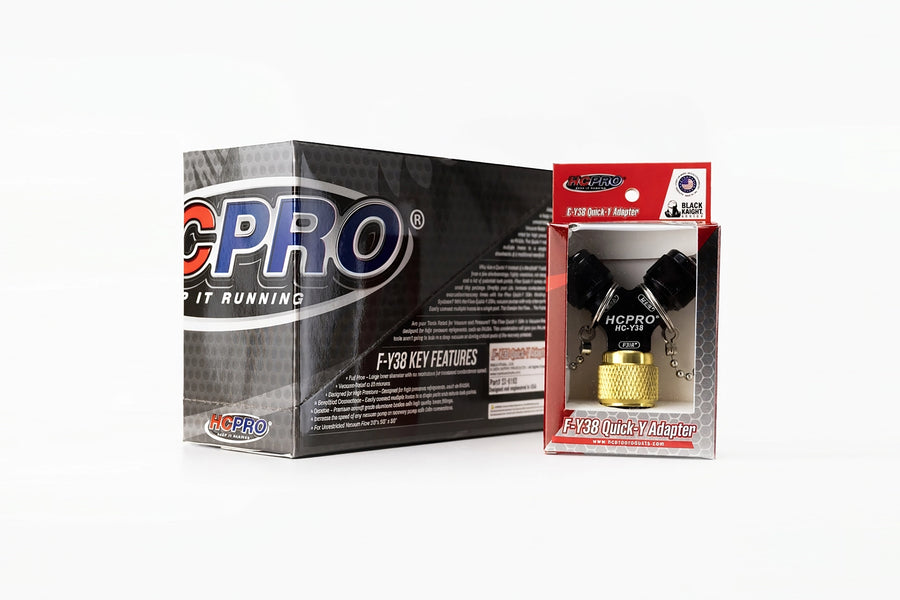

The Quick-Y tee, ready for fast deep-vacuum work.

The Quick-Y tee, ready for fast deep-vacuum work.
HCY38 Quick-Y 3-port vacuum tee3 × 3/8″ SAE ports, full unrestricted bore, solid construction
3/8″ SAE port fittingsConnect pump, system hose, and micron gauge
Port capsProtect the vacuum-rated ports between jobs
Black Knight evacuation insertQuick-Y setup, deep-vacuum technique, pump and hose pairing
Customer reviews

What working techs say after putting it on the truck.

12,000+ HVAC pros served
4.9★ Average rating
94% Repeat buyers

Replace this with a real customer quote — how much faster evacuation got vs the manifold, true micron readings, pairing with the 3/8″ hose.

Marcus T.HVAC TECH · MIAMI, FL
On HCPRO Black Knight HCY38 Quick-Y Vacuum Adapter

Replace this with a real customer quote — how much faster evacuation got vs the manifold, true micron readings, pairing with the 3/8″ hose.

Jorge R.REFRIGERATION CONTRACTOR · ATLANTA, GA
On HCPRO Black Knight HCY38 Quick-Y Vacuum Adapter

Replace this with a real customer quote — how much faster evacuation got vs the manifold, true micron readings, pairing with the 3/8″ hose.

Derrick W.COMMERCIAL HVAC · PHOENIX, AZ
On HCPRO Black Knight HCY38 Quick-Y Vacuum Adapter
Used it on a job?

Share your shop notes

Write a review

Tools that pair with the HCY38.

Common questions

Answers from the warehouse floor.

Still stuck? Call our techs at 305-720-0044.

Does HCPRO warranty the products?

Yes — every HCPRO Black Knight product ships with a 1-year limited warranty against manufacturing defects under normal professional use. We'll replace the manifold, gauges, or hoses if they fail to meet stated specs. See our full warranty terms.

What is the Quick-Y and why use it?

It's a 3-port 3/8″ vacuum tee that replaces your manifold during evacuation. A manifold's internal passages restrict vacuum flow and slow pull-down. The Quick-Y gives the pump a direct, full-bore path to the system plus a dedicated micron-gauge port — so you pull deep vacuum faster and read it accurately. Switch to your manifold only for charging.

How much faster is it than a manifold?

Significant — especially on larger systems and long line sets. The manifold is the hidden bottleneck most techs don't realize is slowing evacuation. Combined with a 3/8″ Dual Force evacuation hose (vs 1/4″) and a strong pump, the Quick-Y setup can cut evacuation time substantially versus pulling through a 1/4″-port manifold.

How do I set it up?

Connect the three 3/8″ ports: one to your vacuum pump (via 3/8″ hose), one to the system service port, and one to your micron gauge. Pull vacuum directly through the tee. When the gauge reads a tight deep vacuum and holds, you're done — then disconnect and switch to the manifold for charging.

Is it refrigerant-specific?

No — it's an evacuation accessory, so it's refrigerant-agnostic. Use it on R-410A, R-32, R-454B, R-22, R-134a — any system you evacuate. The Quick-Y handles the vacuum side; refrigerant type only matters when you switch to the manifold for charging.

What do I pair it with?

The complete fast-evacuation setup: HCY38 Quick-Y + Dual Force 3/8″ evacuation hose + a Black Knight vacuum pump (HCBK-6D or HCBK-12DC for the most flow). Everything stays 3/8″ wide-bore from pump to system, so nothing chokes the vacuum.

Can I leave it connected during charging?

You can, but the Quick-Y is optimized for evacuation. For charging you'll want your manifold's metered control. Most techs evacuate through the Quick-Y, then swap to the manifold to charge — it's a quick disconnect either way.

Can I return an unused Quick-Y?

Yes — free returns within 30 days for unused units in original packaging. Read our full return policy.

Do you offer bulk pricing?

Yes — trade pricing here, volume discounts for shops. Email hcproproductsusa@gmail.com for a custom quote within 24 hours.
